The DP-7 Family of Deicing Control/Status Panels
Inexpensive Assurance of Proper Deicing Operation
Full Remote Control for Testing
M&C Interface for Station Control/Monitor
100-120/200-240 VAC Standard
Control and Monitor Up To 1200' Away

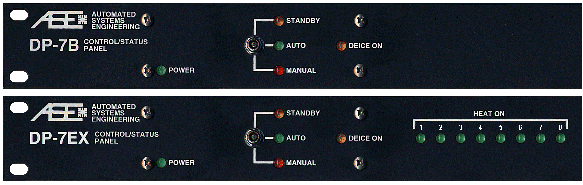

The DP-7 family of remote control/status display panels provides a low cost method of remotely monitoring and controlling DS series sensor/controllers and your deicing system. All provide basic DEICE ON status for the deicing system, along with MANUAL ON, AUTOMATIC, and STANDBY control capabilities. The DP-7EX expands to allow monitoring thermal switches on up to eight antenna points to confirm that heat is being applied where required.

Simple Setup, Simple Operation

The DP-7B/EX is mounted on a 1.75" x 19" standard rack mount panel. The black powder finish assures high indicator visibility, even from a long distance. Termination of cabling from the deicing system is easily made through the rear mounted terminal blocks on the back of the unit. A small power supply for 120/240VAC operation is included.

All connections to the unit are clearly marked on the rear of the panel to simplify installation. A depluggable terminal block for interface also makes swap-out a snap. Control leads going to the DS series sensor are optoisolated in order to improve noise immunity, reduce ground loop problems, and provide circuit protection. This also allows a DP-7B/EX to be mounted as far as 1200 feet from the controlled sensor.

Dry contact I/O for customer monitor and control equipment is also provided for monitoring the status of the deicing system along with allowing full remote MANUAL ON activation, no matter what position the DP-7B/EX control switch is in. A remote M&C MANUAL ON command will also be shown by a front panel indicator.

Download or view the DP-7B/EX Installation Manual in PDF.

DP-7 Deicing Control/Status Panel Part Numbers
Typical leadtime for DP-7 components is stock to 3 weeks

Quantity Discounts Are Available
